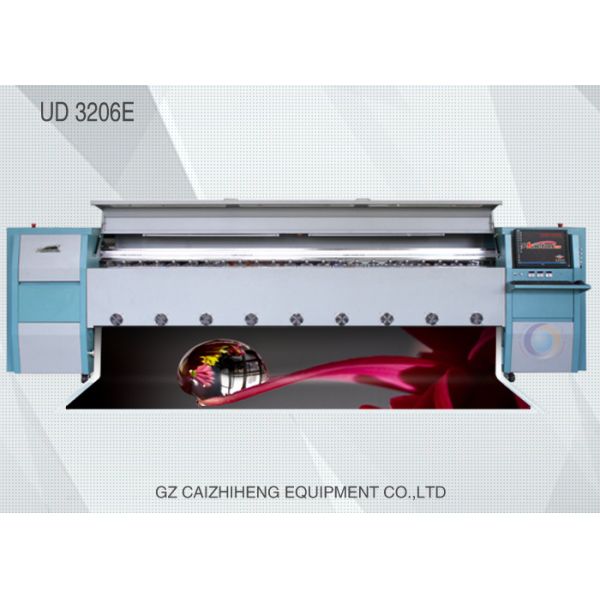

Challenger Outdoor Large Format Solvent Printer 3206E With SPT510 35PL Printhead

Name: Challenger Outdoor Large Format Solvent Printer 3206E With SPT510 35PL Printhead
Brand: Chllenger
Price: 1 USD

Brand Name : Chllenger

Model Number : 3206E

Certification : CE

Place of Origin : Guangdong, China (Mainland)

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram,Cash

Delivery Time : 5 - 8 work days

Packaging Details : Wooden Case

Gross Power : 3000w

Condition : New

Printing Width : 3200mm

Number of printhead : 6 head

Contact Now

Challenger Outdoor Large Format Solvent Printer 3206E With SPT510 35PL Printhead

Specifications

MODEL	UD - 3206E
Printhead SII Printek Inc.	SPT510 - 35PL
Number of printhead	6 Heads
Maximum print width	3 , 200mm
Print Speed (m2 / h)	Print mode	Standard output(m2 / h)
	D	2 PASS 39
	S	3 PASS 27
	Q	4 PASS 18
	HQ	6 PASS 14
	C	-
Ink	Type	Solvent Ink / ECO Solvent Ink
	Color	6 Color (C , M , Y , K , Lc , Lm)
	Capacity	1L or 5L per Main Tank of Each Color
	Ink Supply System	Low Ink Dectector , Auto or Manual Ink Supply System
Media Width	Maximum 3 , 300mm

MODEL	UD - 3206E
Media Type	Vinyl , Window Film , Polyester , Flex , Back - lit Film , etc
Auto Media Feeding System	Equipped (Max . Media Weight 80kg)
Auto Cleaning System	Individual Positive Pressure Cleaning Anti - clogged Flash Function & Capping System
Pre - heating & Drying System	Equipped
Clamp	Equipped
Print Interface	USB 2 . 0
Printhead Height	2 to 6 mm from Media
RIP Software	Maintop , Ultraprint , Photoprint , Wasatch , Topaz
Input Power	AC 220V , 50Hz / 60Hz
Machine Dimension / N . W	L4 , 786 x W930 x H1 ,350mm / 724KG
Package Dimension / G . W	L4 , 980 x W1 ,140 x H1 ,640mm / 1064KG

Features:

Dopts SII Printek Inc. SPT510 / 1020 / 508G printhead Ink

Type : Solvent Ink / Mild Solvent Ink
Color : Double 4 Colors( C , M , Y , K ) / 6 colors (C Y M K Lc Lm)
Capacity : 5L per Main Tank of Each Color
Ink Supply System : Low Ink Detector, Auto or Manual Ink Supply System
Media Width : 3300mm
Type : Vinyl , Flex , Polyester , Back - lit Film , Window Film , banner etc
Payment terms will be adjusted by different countries and area .
Any question , contact me free time , i will give you the best service .
welcome to any enquiry , we will do our best meet your requirement .

Printer Details

1 . High speed / High Saturation , it have 4 pieces of well known Seiko 510 print heads

2 . New innovation . Seiko 510 35pl Printhead , made in Japan

3 . Chamfered mounting base design avoid media search

User friendly print head physical position and angle adjusting

4 . New CNC milled aluminum capping block seal print head tightly Multifunction

5 . The best new improved control boards to protect print heads Front and MID

6 . Heating system with PID temperature control unit

7 . Taking up / Feeding system with patented pressure bar to maintain long feeding

8 . New developed sub tank system to ensure good ink supply

9 . Easy control . Aprint Rip User friendly control console software

USB high speed interface for large volume data transferring

Advantage

1 . High Precision Speed
2 . High quality
3 . Leading Technology
4 . Seiko SPT510 - 35PL Printhead
5 . 6 Color Printing
6 . Digital outdoor inkjet printer with max printing width 3.2M(10.5ft) , with 6pcs Seiko SPT510-35PL Printheads , Large Format Printer

Feature

1 . Seiko solvent printer : adopting Seiko 510 all - steel printhead from Japan . Each head has 510 nozzles , size of each nozzle is 35pl , Ignition Frequency of the head is 30 - 50K , its speed is 2 ~ 4 times of similar products , printer speed can reach 98m2 / h when 4 heads working together .

2 . The printer uses imported guide rail , high precision Stepping system , all - steel flatbed , and suction device inside to make media no wrinkling , to make printing safer and to ensure perfect output quality ; Using positive and negative pressure cleaning system achieves full -automatic printhead cleaning , tee coupling function and moisturizing device effectively protect the printheads and make them longer life .

3 . The temperature of the front and back heating system can be adjusted by Intelligent PID controller , the degree of adsorption can be adjusted by the adsorption knob ; the perfect printing quality meanwhile keeping heads in good condition can be achieved by newest high quality ink - supply system and structure of ink cartridge

Product Photos

Challenger Outdoor Large Format Solvent Printer 3206E With SPT510 35PL Printhead
